Automatic API Versioning with API Gateways: A Complete Guide

Introduction to API Versioning

What Is API Versioning and Why It Matters

I renamed a JSON field without warning anyone — no migration path, no fallback. A partner's mobile app broke instantly, and I spent ten hours fixing it and explaining why.

That moment taught me what API versioning actually means in practice: keeping multiple API iterations alive so clients never break while you evolve freely. Teams that build this into their gateway layer from day one move faster and break things far less.

Challenges of Managing API Versions Manually

Let me be blunt — manual API version management is a trap. It starts innocently. You copy your controller into a v2 folder, update your Nginx reverse proxy config, and call it done. Three months later you have four versions, eight config files, and nobody on the team is entirely sure which rate limits apply to which version.

Here's what kept tripping me up with manual versioning:

• Route sprawl and DNS confusion: Each new version meant touching DNS records and rewriting proxy rules by hand. I once routed v3 traffic to the v1 backend for two days before anyone noticed. The logs showed it. Nobody was reading the logs.
• Security policy drift: API security policies — rate limiting, API keys validation, JSON web tokens verification — need to apply consistently. I launched v2 once with zero rate limits because I forgot to copy that config block. We got hammered.
• Documentation falling behind: API Documentation for older versions would rot. Developers would hit endpoints that no longer behaved as documented and file support tickets blaming us. They weren't wrong.
• No clean rollback: When v2 broke in production, rolling back was a multi-team fire drill. Re-point the proxy, notify the team, confirm the switch, update the docs. Manual and slow every single time.

The longer you run this way, the more technical debt compounds. Eventually you're afraid to touch anything — which is the opposite of where you want to be. Automation through an API gateway is the answer.

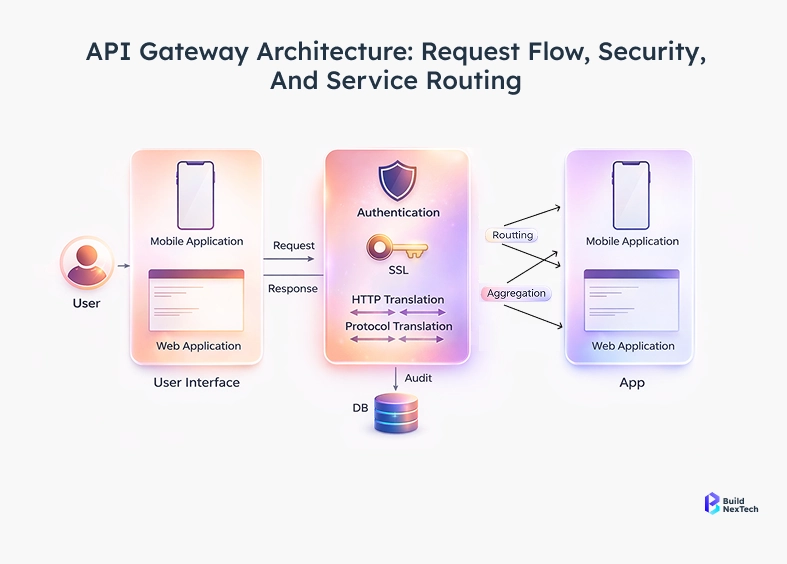

Understanding API Gateways

What Is an API Gateway and How It Works

An API gateway is the front door to your backend. Every API request your clients make — mobile apps, web frontends, third-party integrations — passes through it before reaching any of your services. The gateway decides what to do with each request: authenticate it, authorize it, throttle it, transform it, route it, and log it.

When a request hits https://api.myapp.com/v2/orders, the gateway reads that path, applies the relevant security checkpoint rules for v2, checks rate limits against the caller's API key, and forwards it to the right backend service. The whole thing happens in single-digit milliseconds. The client never sees any internal complexity.

Here's what that flow looks like end-to-end:

Here's what that flow looks like end-to-end:
Client Request
     ↓
API Gateway
  ├── Authenticate  → API keys / JWT tokens
  ├── Authorize     → Role-based access control
  ├── Rate Limit    → rate limits per client / plan
  ├── Route         → Version-specific backend
  ├── Transform     → Request / response shaping
  └── Log & Trace   → Distributed tracing
     ↓
Backend Service (v1 or v2)

I've used AWS API Gateway extensively for Serverless APIs backed by AWS Lambda — the stage variable system maps cleanly to versioned deployments. Azure API Management is more enterprise-oriented and has excellent policy execution tooling built in. For teams running Kubernetes, Spring Cloud Gateway or Gloo Gateway give you code-first control that integrates naturally into a GitOps workflow.

Role of API Gateways in Microservices Architecture

In a microservices architecture, you might have an Order service, Inventory service, Pricing Service, and Review service each maintained by a different team, each on its own release cycle. Without a gateway, every client needs to know the address, version, and protocol of every individual service. That's not scalable and it's not fair to your consumers.

The API gateway becomes the unified facade. Clients talk to one domain. The gateway handles all internal routing, load balancing across service instances, and API security enforcement. This is why the gateway is such a core piece of the microservice architecture pattern it completely decouples clients from your internal topology.

I've worked on teams that pair the gateway with a service mesh Istio or Envoy Proxy for east-west traffic between services, while the gateway handles north-south external traffic. The gateway owns the API Lifecycle for consumers; the mesh handles internal reliability. Keeping those two concerns separate makes both systems easier to operate.

Automatic API Versioning with API Gateways

Request Routing Based on API Version

Request Routing is where the real automation kicks in. Instead of someone manually editing a config file every time a new version ships, the gateway reads the version signal from the incoming request and routes it to the correct backend without human involvement.

Here's a Spring Cloud Gateway routing config I've used in production:

spring:
  cloud:
    gateway:
      routes:
        - id: orders-v1
          uri: http://orders-service-v1:8080
          predicates:
            - Path=/v1/orders/**
        - id: orders-v2
          uri: http://orders-service-v2:8080
          predicates:
            - Path=/v2/orders/**

Two routes, two backends. The gateway matches the incoming path prefix and forwards accordingly. No custom code, no manual switching on deploy day. The v1 service runs untouched while v2 gets all new traffic. Both run behind the same domain with identical API security, rate limiting, and auth policies enforced at the gateway level.

For AWS API Gateway, stage variables accomplish the same thing — each stage (v1, v2) maps to a different Lambda alias or backend endpoint. The routing is managed entirely through API mappings in the gateway config, not buried in application code somewhere.

Managing Multiple API Versions Without Breaking Clients

The fear I used to carry into every deployment was: "Who is this going to break?" With automatic gateway-level versioning, that fear dissolves. I deploy v2 behind its own route and v1 keeps running exactly as it always has. No client notices anything. No support tickets, no frantic Slack messages at 2am.

The gateway acts as a long-term compatibility layer. API security policies and rate limits apply uniformly across all versions without me duplicating anything. When a client is ready to upgrade, they update their base URL from /v1/ to /v2/ on their side. I'm not involved in that coordination at all. That independence is enormously valuable, especially when you're dealing with enterprise clients who have their own lengthy release cycles.

This is the API Lifecycle working as it should: versions are introduced, maintained, deprecated, and retired in a controlled and traceable way — orchestrated entirely through gateway configuration.

Implementation Workflow of Automatic API Versioning

Over time I've settled on a repeatable workflow for every new API version I ship:

1. Define versioned routes in gateway config (code-reviewed, git-tracked)
2. Deploy the new backend service or Lambda alias for the new version
3. Apply uniform policies -- auth, rate limiting, logging -- via gateway rules
4. Update API Documentation and flag the old version as deprecated
5. Add Deprecation + Sunset headers to old version responses
6. Notify consumers with migration timeline and upgrade guide
7. Monitor per-version adoption metrics in your observability stack
8. Retire the old version after the sunset date passes

That Deprecation header on step 5 is something I started adding after working in Healthcare Interoperability projects where downstream clients have long compliance cycles. A Sunset header gives them programmatic notice without any breaking change on our side:

HTTP/1.1 200 OK
Deprecation: true
Sunset: Sat, 01 Mar 2026 00:00:00 GMT

Small touch, big signal. Clients who read headers get months of warning. The ones who don't read headers get the same treatment they'd get in a manually managed system — which is why I always back it up with email announcements too.

API Versioning Strategies Used with Gateways

Path-Based Versioning

Path-based versioning is my default for any public-facing RESTful APIs. The version is right there in the URL — visible in browser dev tools, server logs, and every support ticket a developer files. There's zero ambiguity about what someone is calling.

https://api.myapp.com/v1/products
https://api.myapp.com/v2/products

Path-Based URLs route trivially in any API gateway. Gloo Gateway, Kong, AWS API Gateway, and Spring Cloud Gateway all handle path prefix matching natively. It also makes API Testing straightforward: you point your test suite at a specific version URL and know with certainty what backend it hits.

The tradeoff is that REST purists argue a URL should represent a resource, not a resource at a point in time. I've had that exact argument in code reviews. I still use path-based versioning. Pragmatism wins in production environments.

Header and Query Parameter Versioning

For internal APIs — ones consumed only by services I control — I sometimes use header-based versioning. It keeps the URL clean and puts the version signal in request metadata where it arguably belongs semantically:

GET /products HTTP/1.1
Host: api.myapp.com
Accept: application/vnd.myapp.v2+json

Azure API Management handles this well through its native policy engine. You define a version set, map it to header values, and the gateway routes automatically. For teams already invested in the Azure ecosystem, this is a smooth developer experience that doesn't require any URL restructuring.

Query parameter versioning — for example, passing a version flag directly in the URL. I use sparingly, mostly for internal tooling or quick manual tests where I need to hit a specific version from a browser without changing headers. It's the least elegant approach, but occasionally the most convenient.

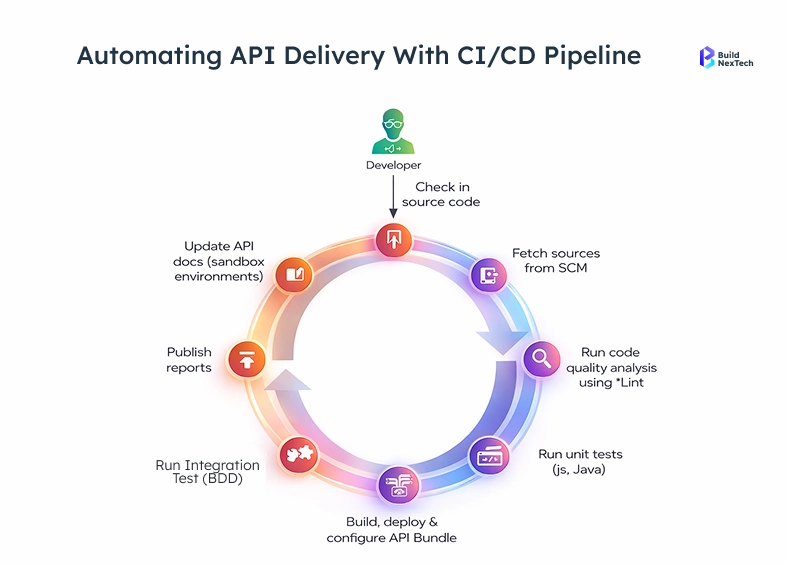

CI/CD Integration for API Versioning

Automating Version Deployment in CI/CD Pipelines

The real power unlocks when versioning is part of the deployment pipeline, not something a human does after the fact. Every merge to main automatically registers the new API version in the gateway — no forgotten config updates, no manual switching.

Here's the GitHub Actions step I use for AWS API Gateway deployments:

- name: Deploy API version to gateway
  run: |
    aws apigateway create-deployment \
      --rest-api-id ${{ secrets.API_ID }} \
      --stage-name v2 \
      --description "CI deploy: ${{ github.sha }}"

The OpenAPI Specification file lives in the same repository as the service code. On every pull request the pipeline validates it. On merge it applies the updated spec to the gateway. API mappings, custom domain name bindings, and stage variables are managed through AWS CDK as infrastructure-as-code. On Azure I use Bicep files and Azure DevOps pipelines — same principle, consistent and auditable.

Monitoring and Rollback Strategies

I set up a gateway health check endpoint for every active API version and monitor it continuously. If the error rate on v2 spikes above a threshold, I want to know within a minute — not when a client emails us hours later.

For AWS deployments, CloudWatch dashboards broken down by stage give me error rates, P99 latency, and API requests volume per version. For Azure, Azure Monitor and Application Insights handle the same job with strong visualization tooling. Distributed tracing through AWS X-Ray or Jaeger gives me end-to-end request traces to pinpoint whether an error originates in the gateway itself or deeper in a backend service.

Rollback is the easy part when everything lives in version control. I revert the gateway config commit, re-run the pipeline, and traffic shifts back to v1 within minutes. The v1 backend never went down I never took it offline. That's the key discipline: treat old versions as live standbys until the new version is proven stable.

Best Practices for Automatic API Versioning

Using Semantic Versioning

I apply semantic versioning to APIs the same way I apply it to software libraries: breaking changes bump the major version, additive backward-compatible changes bump minor, and bug fixes don't surface publicly at all. Externally I only expose major versions in URLs. The API management system internally tracks the full MAJOR.MINOR.PATCH tag per deployment. This gives the team precision without confusing external developers with patch numbers they don't need to care about. It also keeps the API surface clean and easy to reason about from a consumer perspective.

Maintaining Backward Compatibility

My rule on backward compatibility is firm: never remove a field, never rename a field, never change a field's type within an existing version. Add fields freely, add endpoints freely — but you cannot take anything away from a version already in the wild.

I enforce this with contract tests in CI. The test suite snapshots the current v1 response schema and diffs every new deployment against it. A field disappears, the diff fails, the pipeline blocks. It has caught several accidental regressions before they ever reached the gateway.

When migrating auth mechanisms — say, from API keys to JSON web tokens — I run dual-auth through the gateway during the transition window. v1 accepts both simultaneously. v2 enforces JWT-only. Clients move at their own pace. Self-hosted gateways like Kong give me per-version, per-consumer-tier control over this. Cloud options like AWS API Gateway and Azure API Management offer the same flexibility through their built-in policy engines.

Conclusion

If there's one thing I'd tell my past self before that awful Tuesday the partner's app broke, it's this: treat API versioning as infrastructure, not an afterthought. Put it in your gateway, automate it in your pipeline, and monitor it the same way you monitor anything that customers depend on.

Automatic API versioning through a well-configured API gateway removes human error, manual overhead, and the anxiety of shipping changes. Whether you're running on AWS API Gateway, Azure API Management, Gloo Gateway, or Spring Cloud Gateway, the core pattern holds. Centralize routing, automate deployments, enforce policies uniformly, and keep your clients informed with enough lead time to migrate on their schedule.

Start with one service and one gateway config. Get that right. Then expand. That's the only sustainable path to scaling API development without breaking things and, more importantly, without breaking trust. At bnxt.ai, this principle sits at the core of everything we build.
